Trexo Plus, over-ground ambulation for pediatric clinics
An actively powered exoskeleton that detects patient initiation, supporting children to take intentional steps under the supervision of a trained clinician.
The step doesn't complete without the child.
Dial the assistive force below the child's threshold and the gait cycle can run all session without finishing a single step. The child has to push into it for the leg to swing through. Same child, same setup, two outcomes.
Support tuned below threshold. The leg never swings through.
The child pushes in, the step completes, walking begins.
Same patient. Same configuration. Different intent.
No two children walk the same. Neither should their Trexo.

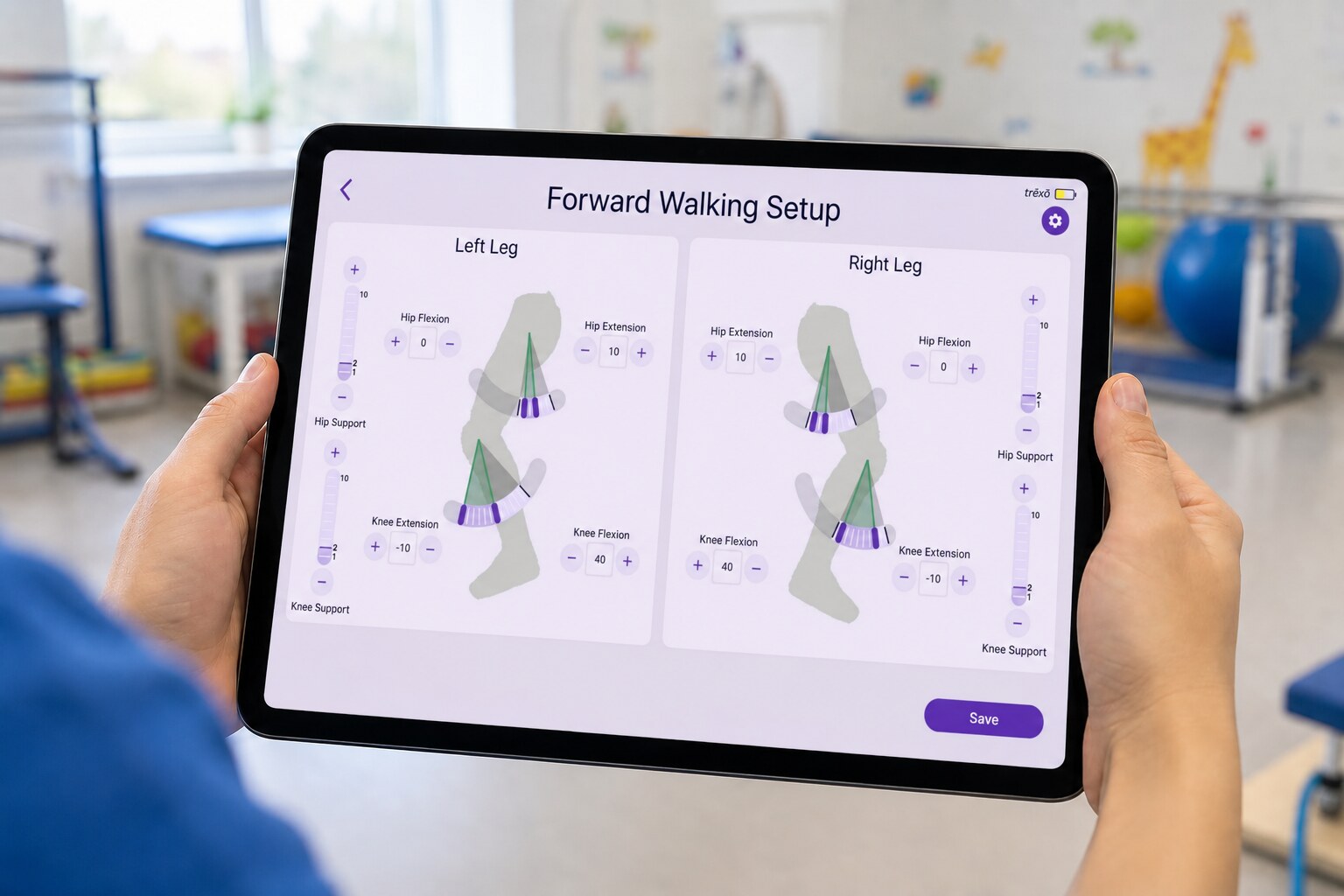

Adjust hip and knee angles, stride length, cadence and assistive force from the handheld tablet. Save a pattern per patient, refine it session over session, and watch live gait feedback as you tune.
- Per-joint angle control
- Stride length and cadence
- Assistive force balance
- Saved per-patient presets
Live data to guide every session
Step count, patient initiation and gait quality are captured in real time, so clinicians can keep sessions on track.
Battery powered, use it anywhere
Over-ground and cordless. Move between rooms, gyms and outdoor surfaces without tethering the child to a treadmill.
Built around a clinical session
Every Trexo Plus capability serves a phase of the session - from clinician setup, through the child's active gait, to the patient-protection layer running in the background at all times.
Technical foundation
Pre-session setupAdjustable walking speed
Dynamic pacing control
Customisable gait pattern
Patient-specific kinematics
Live patient initiation
Real-time effort measure
Gait modes
Movement- Standing
- Walking
- Backward walking
- High-tone walking
- Treadmill walking
Active assist
EffortPatient protection layer
Always onSafe range of motion
Mechanical limits enforced
Flexible weight bearing
Adaptive load management
Adjustable support force
Real-time force control
Spasticity control
Reactive motor damping
Emergency E-Stop
Instant system-wide mechanical disengagement at the clinician's hand.
Sizing
| Size | Hip to floor (cm) | Hip to knee (cm) | Knee to floor (cm) | Max weight |
|---|---|---|---|---|
| Small | 40–47 | 18 | 22–29 | 36 kg |
| Medium | 43–53 | 21–24 | 22–29 | 36 kg |
| Large | 55–76 | 26–34 | 29–42 | 56 kg |
| Extra Large | 62–94 | 29–39 | 33–55 | 68 kg |
- Size: Small
- Hip to floor (cm)
- 40–47
- Hip to knee (cm)
- 18
- Knee to floor (cm)
- 22–29
- Max weight
- 36 kg
- Size: Medium
- Hip to floor (cm)
- 43–53
- Hip to knee (cm)
- 21–24
- Knee to floor (cm)
- 22–29
- Max weight
- 36 kg
- Size: Large
- Hip to floor (cm)
- 55–76
- Hip to knee (cm)
- 26–34
- Knee to floor (cm)
- 29–42
- Max weight
- 56 kg
- Size: Extra Large
- Hip to floor (cm)
- 62–94
- Hip to knee (cm)
- 29–39
- Knee to floor (cm)
- 33–55
- Max weight
- 68 kg
Sizes are determined based on height and not restricted by age.
Contraindications
Trexo Plus is not indicated for pediatric patients presenting with the following:
- -Knee flexion contracture > 30°
- -Severe knee valgus that cannot be corrected
- -Hip flexion contracture (unable to obtain hip neutral of 0°)
- -Severe spasticity (Ashworth 4)
- -Weight-bearing restrictions (recent orthopaedic surgery, concerns of hip subluxation)
- -History or suspicion of lower-limb fragility fracture (Osteogenesis Imperfecta, Osteoporosis, Osteopenia)
- -Patient unable to communicate discomfort or pain (including non-verbal cues)
Annual re-evaluation by the primary care physician and/or PT/OT is required to confirm ongoing appropriateness.
Indication of use
The Trexo is a powered ambulatory device intended to support walking among individuals with disabilities and weakness. The device is intended to be used in a home or clinic setting, to assist in a user's mobility, in general wheelchair accessible areas.
Contact clinical salesClinical network
Trusted in clinics and children's hospitals worldwide
Trexo Plus is used by leading pediatric rehabilitation programs across North America, the Middle East, Asia-Pacific and Europe, with the European network expanding through CE-marked rollout.
- High Hopes Pediatric Therapy - Dubai, UAE
- Alberta Children's Hospital - Calgary, CA
- Holland Bloorview - Toronto, CA
- Seattle Children's Hospital - Seattle, US
- Cincinnati Children's Hospital - Cincinnati, US
